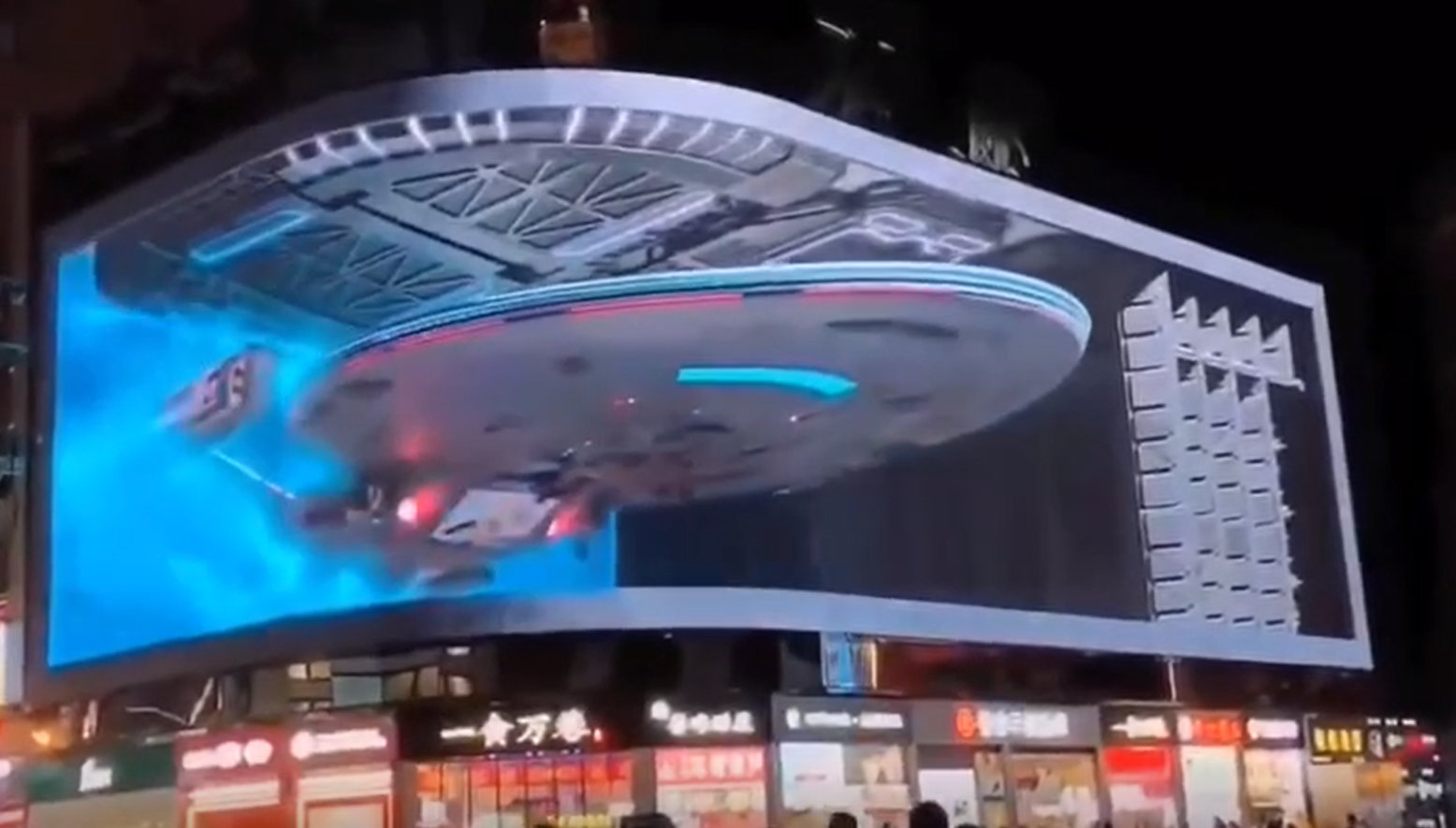

Outdoor 3D led wall screen
Our outdoor 3D led wall screen led display can be widely used for advertising play in many places, such as, shop, school, hospital, train station, metro station, airport, supermarket, shopping mall, hotel and business building etc.
Images
Product lnformation
Optional model of outdoor 3D led display led screen: P3, P3.91, P4, P4.81, P5, P6, P8, P10
Module size: 192x192mm, 250x250mm, 256x128mm, 320x160mm
Pixel Configuration: 1R1G1B
Resolution: based on different model
Cabinet type: Steel cabinet and die casting aluminum cabinet
Cabinet Size: based on different model
Cabinet weight: 45Kg/㎡ for steel cabinet; 32Kg/㎡ for alluminum cabinet
Maintenance type: Back or front or both back and front
Protective grade: IP65 in front and IP54/55 on back
Brightness: 5000~6500 nits/㎡.
Scanning frequency: 1/8, 1/4, 1/2
Best view distance: >=3 meters
Power consumption: Average 300W ~800W/㎡
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency: 720Hz, 1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 10,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～60℃ / 20%～90%RH
Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
