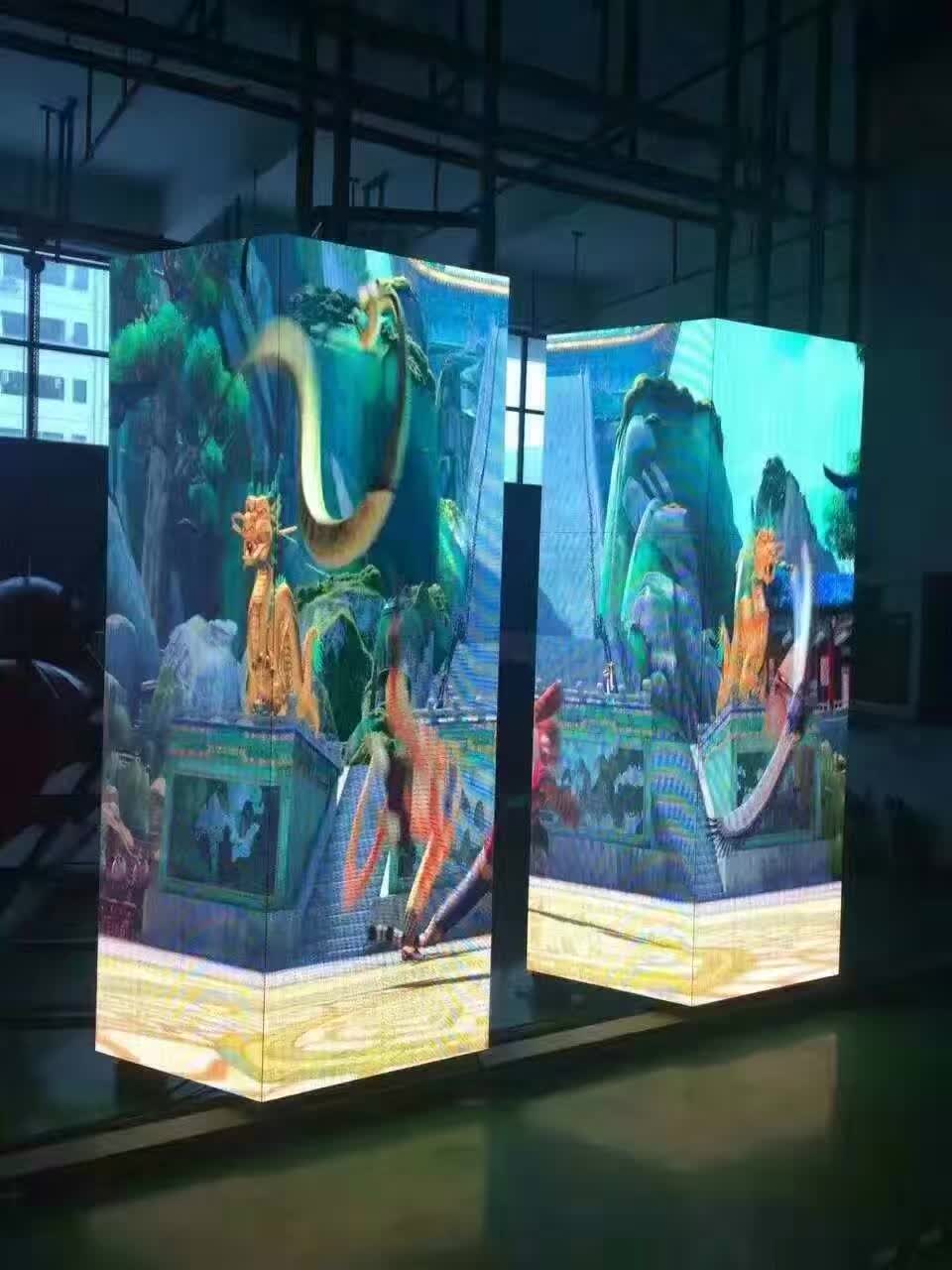

Customized indoor led screen
Our Customized indoor led screen can be widely used for advertising play in many places, such as, shop, supermarket, stage, club, bar, railway station, airport, school, hospital, stadium, shopping mall, party, concert, hotel and business building etc
Images
Product lnformation
- Optional Pixel Pitch of customized led display screen: P2, P2.5, P3, P3.91, P4, P4.81, P5
- Module size: 256x128mm, 320x160mm, 192x192mm, 250x250mm
- Pixel Configuration: 1R1G1B
- LED type: SMD 3 in 1
- Cabinet type: Steel cabinet.
- Cabinet Size: it can be customized as module quantity
- Cabinet weight: 40Kg/㎡ for steel cabinet
- Maintenance type: Back or front.
- Protective grade: IP30 for indoor
- Brightness: 600~1000 nits/㎡.
- Scanning frequency: 1/16,1/32.
- Best view distance: 2m ~ 300m.
- Power consumption: 300W ~ 800W/㎡ based on different model.
- Input Voltage: AC220V/50Hz or AC110V/60Hz.
- Viewing Angle: 160°/160° (H/V).
- Refresh frequency: 1920Hz, 3840Hz.
- Earth Leakage Current: ≤ 3mA
- Dot Defects Rate: ≤ 0.0001
- MBTF: 10,000 hours.
- Lift span: 100,000 hours.
- Operating Temp.& RH: ﹣20℃～60℃ / 20%～90%RH
- Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
- Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
- Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
- Gray grade: 256 degree.
- Max. color of display: 65536x65536x65536.
