Product lnformation

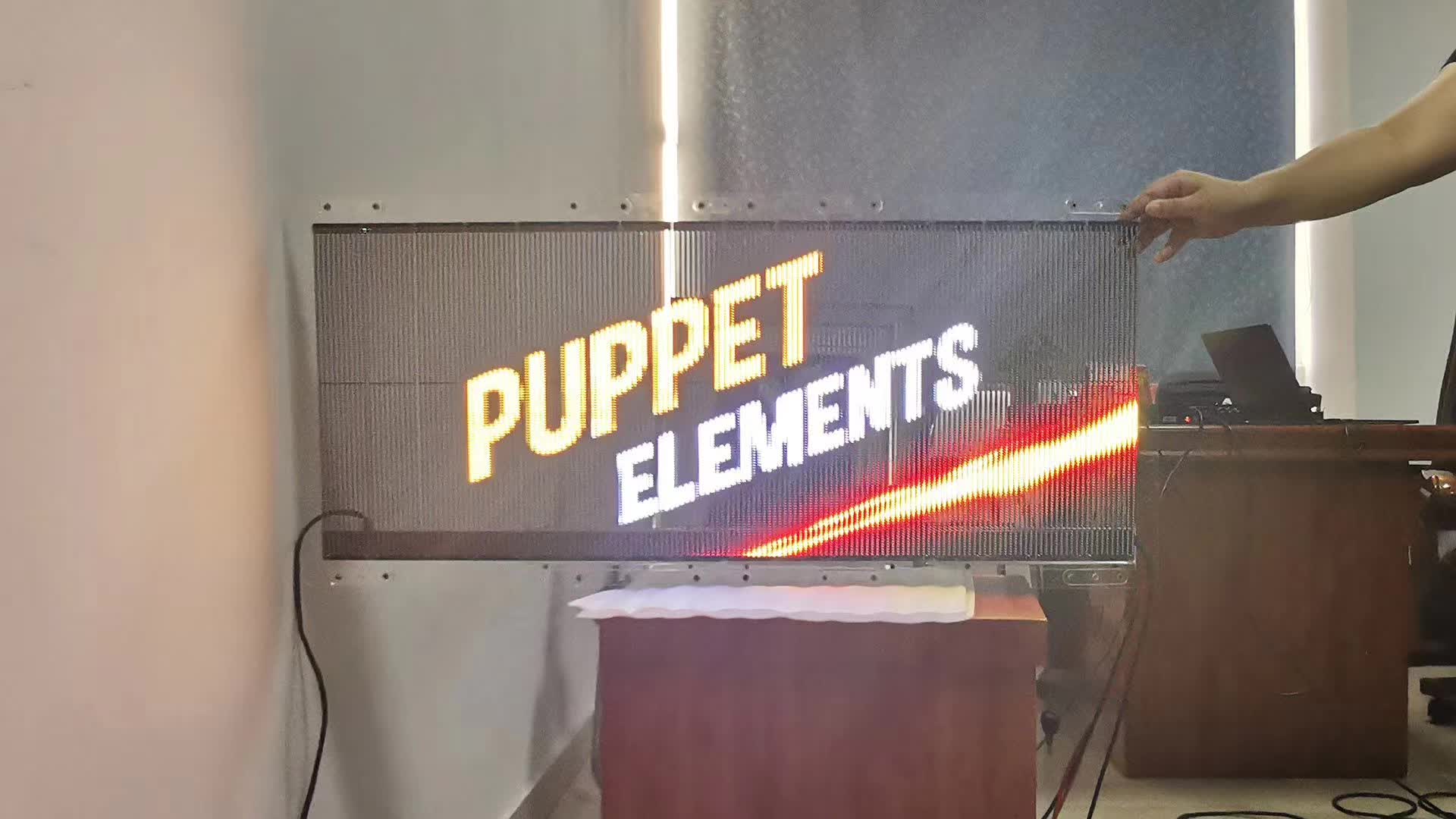

1. Pixel Pitch of transparent car taxi vehicle led display: 3.91mm, 5mm, 7.82mm
2. Module size: 500X1000mm, or customized as client’s requirement
3. Pixel Configuration: 1R1G1B
4. LED type: SMD 3 in 1
5. Cabinet type: Steel cabinet and die casting aluminum cabinet.
6. Cabinet Size: it can be customized as module quantity
7. Cabinet weight: 6Kg/㎡ for steel cabinet
8. Maintenance type: Back
9. Protective grade: IP30 for indoor, IP65 for outdoor
10. Brightness: 1000~6000 nits/㎡.
11. Scanning frequency: 1/2, 1/4, 1/8, 1/13, 1/16, 1/26, 1/30, 1/32.
12. Best view distance: 1m ~ 300m.
13. Power consumption: 100W ~ 1000W/㎡ based on different model.
14. Input Voltage: AC220V/50Hz or AC110V/60Hz.
15. Viewing Angle: 130°/130° (H/V).
16. Refresh frequency: 1920Hz, 3840Hz.
17. Earth Leakage Current: ≤ 3mA
18. Dot Defects Rate: ≤ 0.0001
19. MBTF: 5,000 hours.
20. Lift span: 100,000 hours.
21. Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
22. Strorage Temp. & RH:  ﹣40℃～85℃ / 10%～95%RH
23. Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
24. Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
25. Gray grade: 256 degree.
26. Max. color of display: 65536x65536x65536.
