Product lnformation

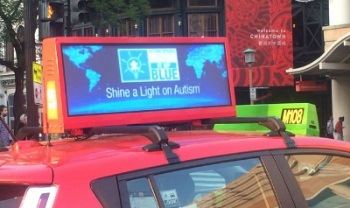

Optional model of  car taxi led screen led dispaly: P3, P4, P5, P6

Module size: 192x192mm, 256x128mm, 320x160mm

Pixel Configuration: 1R1G1B

LED type: SMD2121, SMD3528, SMD3535

Resolution: Based on model and size

Cabinet type: Steel or aluminum

Cabinet Size: can be customized

Cabinet weight: based on cabinet type and cabinet size

Maintenance type: Back

Protective grade: IP65

Brightness: 5000~6500 nits/㎡.

Scanning frequency: 1/8, 1/4

Best view distance: >=3 meters

Power consumption: Average 300W W/㎡

Input Voltage: AC220V/50Hz or AC110V/60Hz.

Viewing Angle: 160°/160° (H/V).

Refresh frequency: 1920Hz, 3840Hz.

Earth Leakage Current: ≤ 3mA

Dot Defects Rate: ≤ 0.0001

MBTF: 10,000 hours.

Lift span: 100,000 hours.

Operating Temp.& RH: ﹣20℃～60℃ / 20%～90%RH

Strorage Temp. & RH:  ﹣40℃～80℃ / 20%～90%RH

Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission

Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc

Gray grade: 256 degree.
