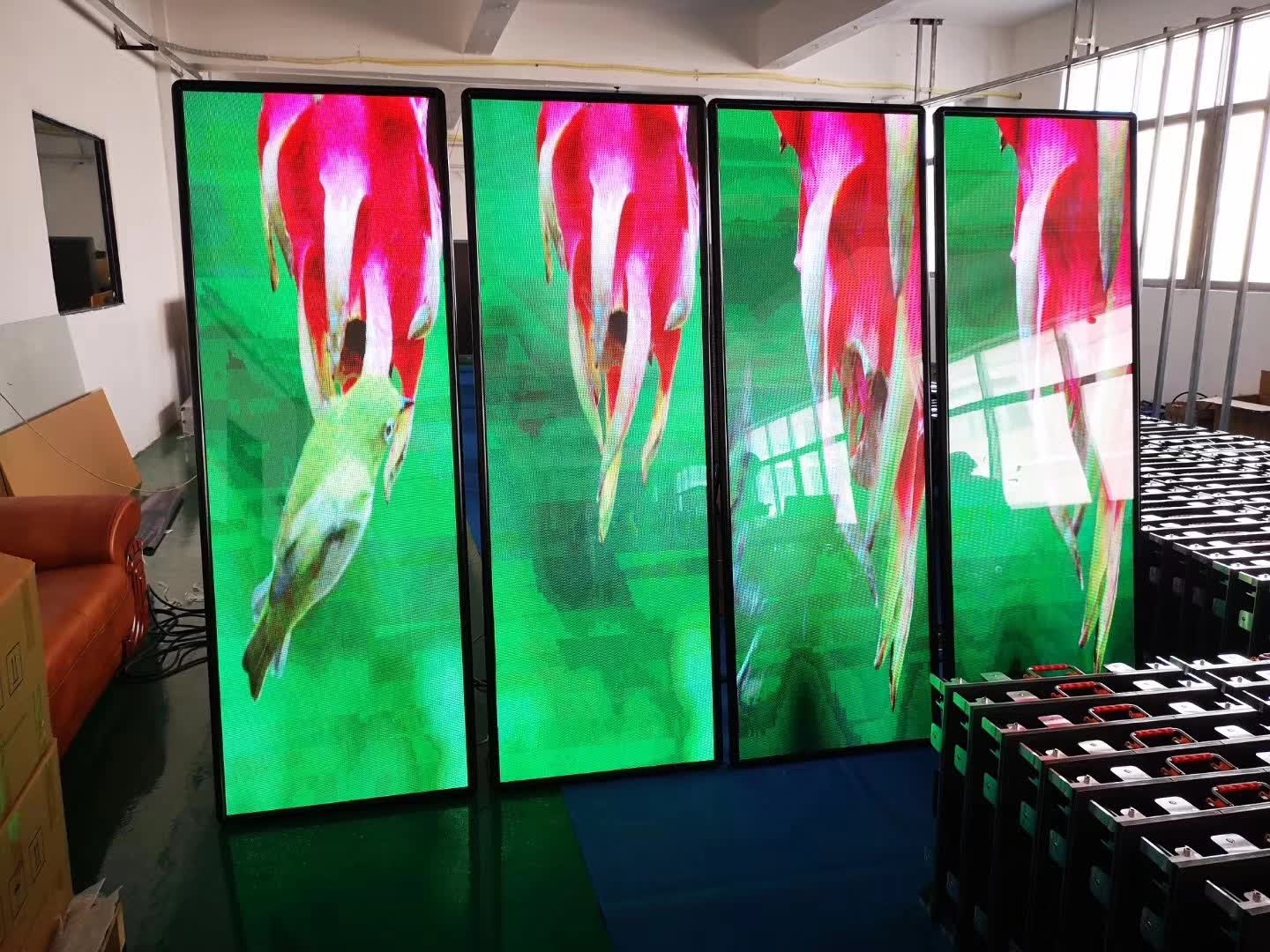

Indoor single-side standing led display
Our Indoor single-side standing led display can be widely used for advertising play in many places, such as, shop, school, hospital, meeting room, railway, metro, airport, stage, supermarket, shopping mall, party, concert, hotel and business building etc.
Images
Product lnformation
- Optional Pixel Pitch of indoor single-side standing led display: 1.25mm, 1.56mm, 1.86mm, 2mm, 2.5mm, 3mm
- Module size: 160x160mm,320x160mm, 256x128mm, 192x192mm
- Pixel Configuration: 1R1G1B
- LED type: SMD 3 in 1
- Resolution: 160,000 dots per square meter
- Cabinet type: Steel cabinet
- Cabinet Size: (1) usual size is 1920x640mm (2) can be customized as client’s requirements if client needs
- Cabinet weight: 50Kg/pcs
- Maintenance type: Back or front or both back and front.
- Protective grade: IP30
- Brightness: 800~1000 nits/㎡.
- Scanning frequency:1/16, 1/32.
- Best view distance: >=2.5m
- Power consumption: Average 300W/㎡
- Input Voltage: AC220V/50Hz or AC110V/60Hz.
- Viewing Angle: 160°/160° (H/V).
- Refresh frequency: 1920Hz, 3840Hz.
- Earth Leakage Current: ≤ 3mA
- Dot Defects Rate: ≤ 0.0001
- MBTF: 10,000 hours.
- Lift time: 100,000 hours.
- Operating Temp.& RH: ﹣20℃～65℃ / 20%～85%RH
- Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
- Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
- Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
- Gray grade: 256 degree.
- Max. color of display: 65536x65536x65536
