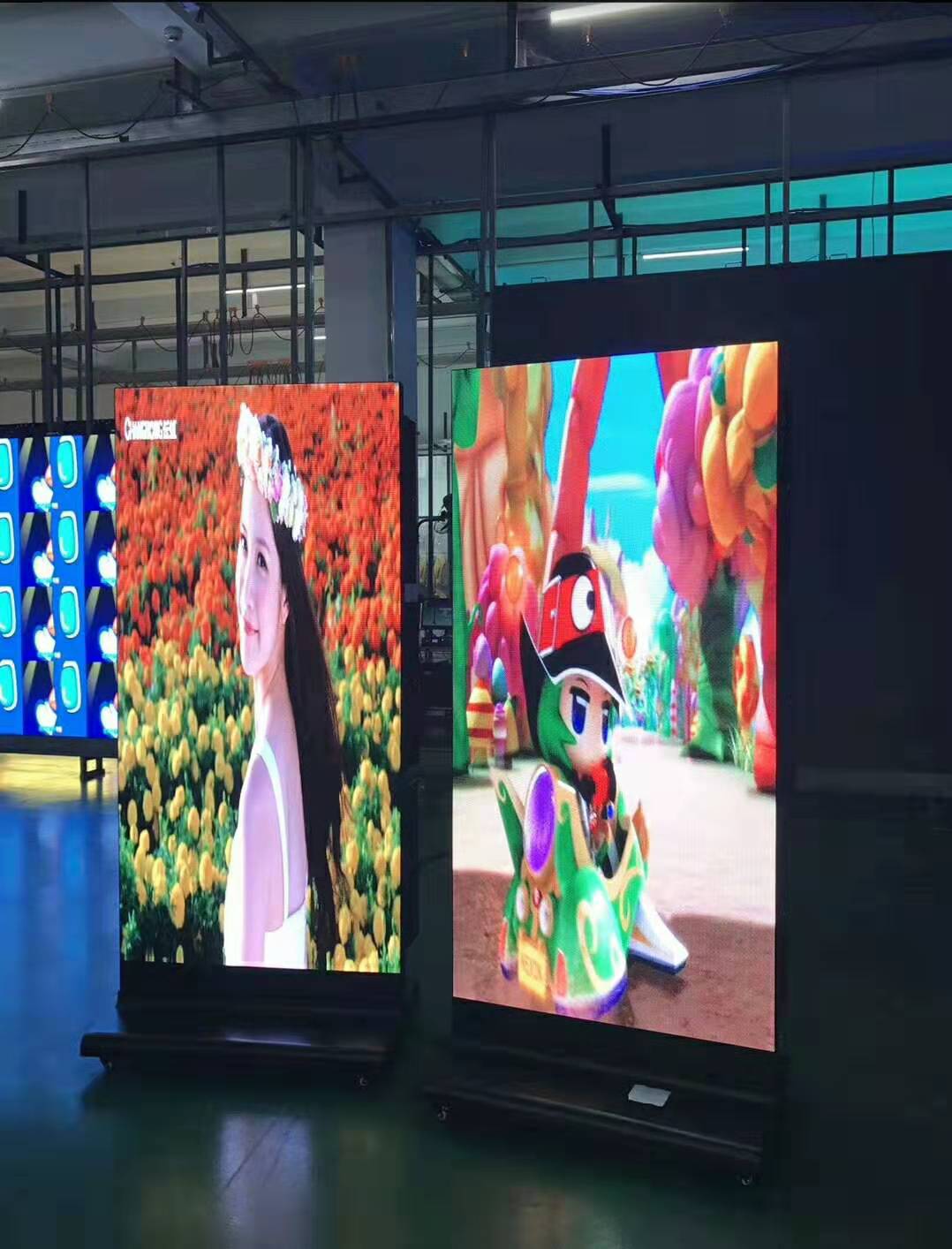

Outdoor single-side movable standing led screen
Our outdoor single-side standing led display can be widely used for advertising play in many places, such as, shop, school, hospital, meeting room, railway, metro, airport, stage, supermarket, shopping mall, party, concert, hotel and business building etc.
Images
Product lnformation
- Optional model of outdoor single-side standing movable led display: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm
- Module size: 320x160mm, 256x128mm, 192x192mm
- Pixel Configuration: 1R1G1B
- LED type: SMD 3 in 1
- Resolution: 160,000 dots per square meter
- Cabinet type: Steel cabinet with wheel on base
- Cabinet Size: it can be customized as client’s requirements if client needs
- Cabinet weight: 35Kg per square meter
- Maintenance type: Back
- Protective grade: IP65
- Brightness: 400~6000 nits/㎡.
- Scanning frequency: 1/2, 1/4, 1/8.
- Best view distance: >=3m
- Power consumption: Average 300W~600w/㎡
- Input Voltage: AC220V/50Hz or AC110V/60Hz.
- Viewing Angle: 160°/160° (H/V).
- Refresh frequency: 1920Hz, 3840Hz.
- Earth Leakage Current: ≤ 3mA
- Dot Defects Rate: ≤ 0.0001
- MBTF: 10,000 hours.
- Lift time: 100,000 hours.
- Operating Temp.& RH: ﹣20℃～60℃ / 20%～85%RH
- Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
- Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
- Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
- Gray grade: 256 degree.
- Max. color of display: 65536x65536x65536
