Product lnformation

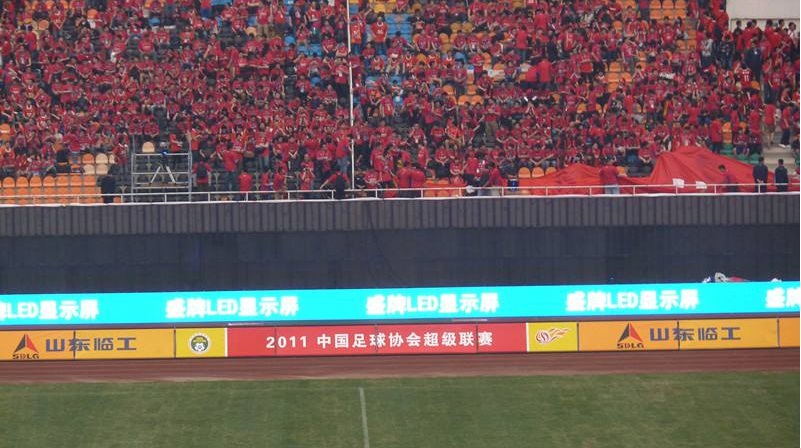

1. Optional model of outdoor floor stadium led screen: P4, P5, P6, P8, P10
2. Module size: 256x128mm, 192x192mm, 320x160mm,
3. Pixel Configuration: 1R1G1B
4. LED type: SMD 3 in 1
5. Cabinet type: Steel cabinet and die casting aluminum cabinet.
6. Cabinet Size: 1024x1024mm, 960x960mm
7. Cabinet weight: 45Kg/㎡ for steel cabinet; 35kg/㎡ for die casting aluminum cabinet.
8. Maintenance type: Back
9. Protective grade: IP65 in front and IP54/55 on back
10. Brightness: 4500~6500 nits/㎡.
11. Scanning frequency: 1/2, 1/4, 1/5, 1/8.
12. Best view distance: >=4 meters
13. Power consumption: 300W ~ 600W/㎡ based on different model.
14. Input Voltage: AC220V/50Hz or AC110V/60Hz.
15. Viewing Angle: 160°/160° (H/V).
16. Refresh frequency: 720Hz, 1920Hz, 3840Hz.
17. Earth Leakage Current: ≤ 3mA
18. Dot Defects Rate: ≤ 0.0001
19. MBTF: 50,000 hours.
20. Lift span: 100,000 hours.
21. Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
22. Strorage Temp. & RH:  ﹣40℃～80℃ / 20%～90%RH
23. Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
24. Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
25. Gray grade: 256 degree.
