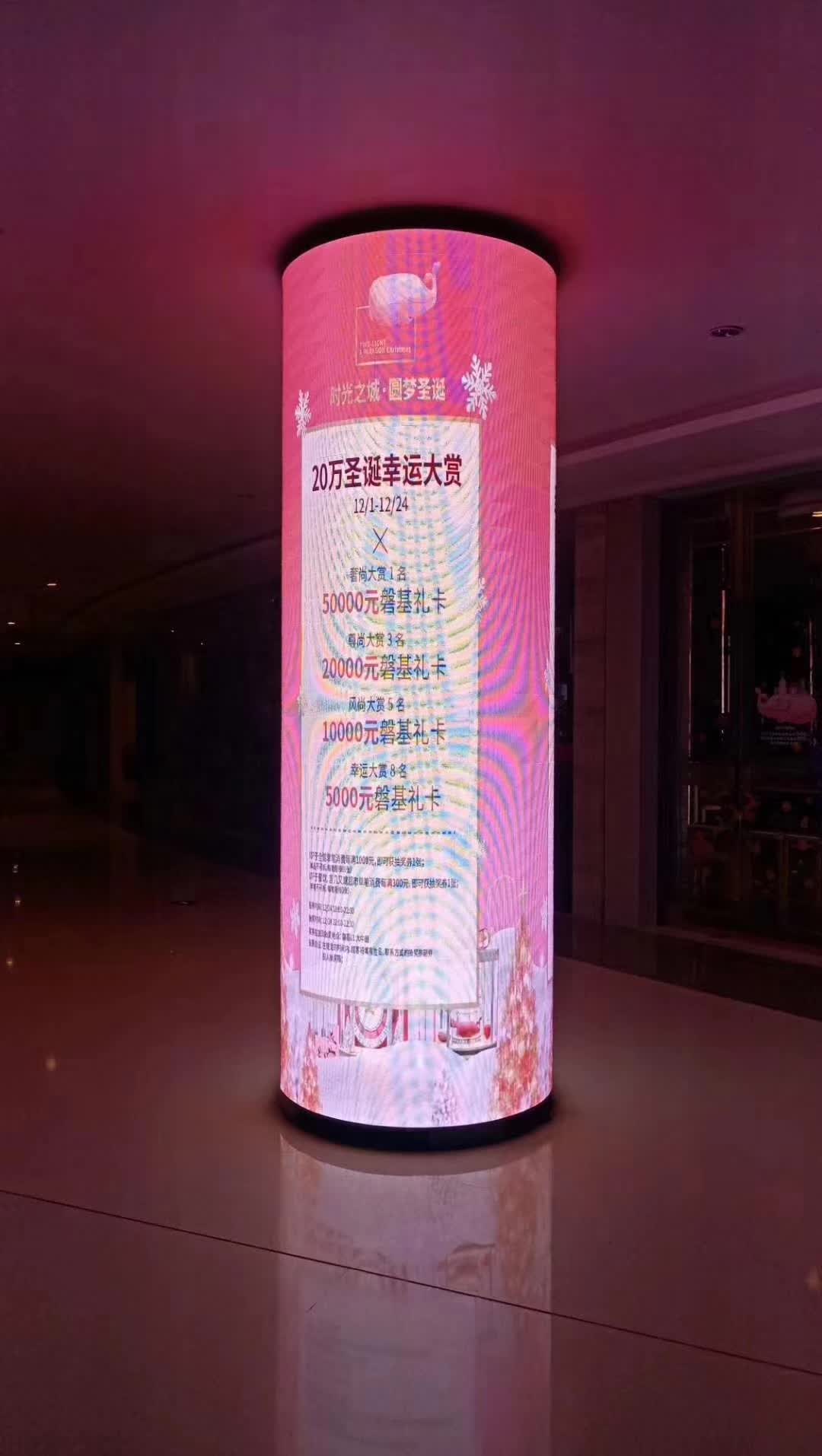

Indoor P5 curved led wall screen
Our Indoor P5 curved led wall screen can be widely used for advertising play in many places, such as, shop, school, hospital, meeting room, railway, metro, airport, stage, supermarket, shopping mall, party, concert, hotel and business building etc.
Images
Product lnformation
Pixel Pitch of indoor curved led screen: 5mm
Module size: 256X128mm or 320x160mm
Pixel Configuration: 1R1G1B
LED type: SMD2121 or SMD3528
Resolution: 40000 dots per square meter
Cabinet type: Steel cabinet or die casting aluminum
Cabinet Size: it can be customized based on led module quantity
Cabinet weight: 40Kg/㎡ for steel cabinet; 30Kg/㎡ for steel cabinet
Maintenance type: Back or front
Protective grade: IP65 in front and IP54/55 on back
Brightness: 1000~1500 nits/㎡.
Scanning frequency: 1/16 or 1/8
Best view distance: >=5 meters
Power consumption: Average 200W W/㎡
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency: 720Hz, 1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 50,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
