Indoor P1.25 led wall sceen

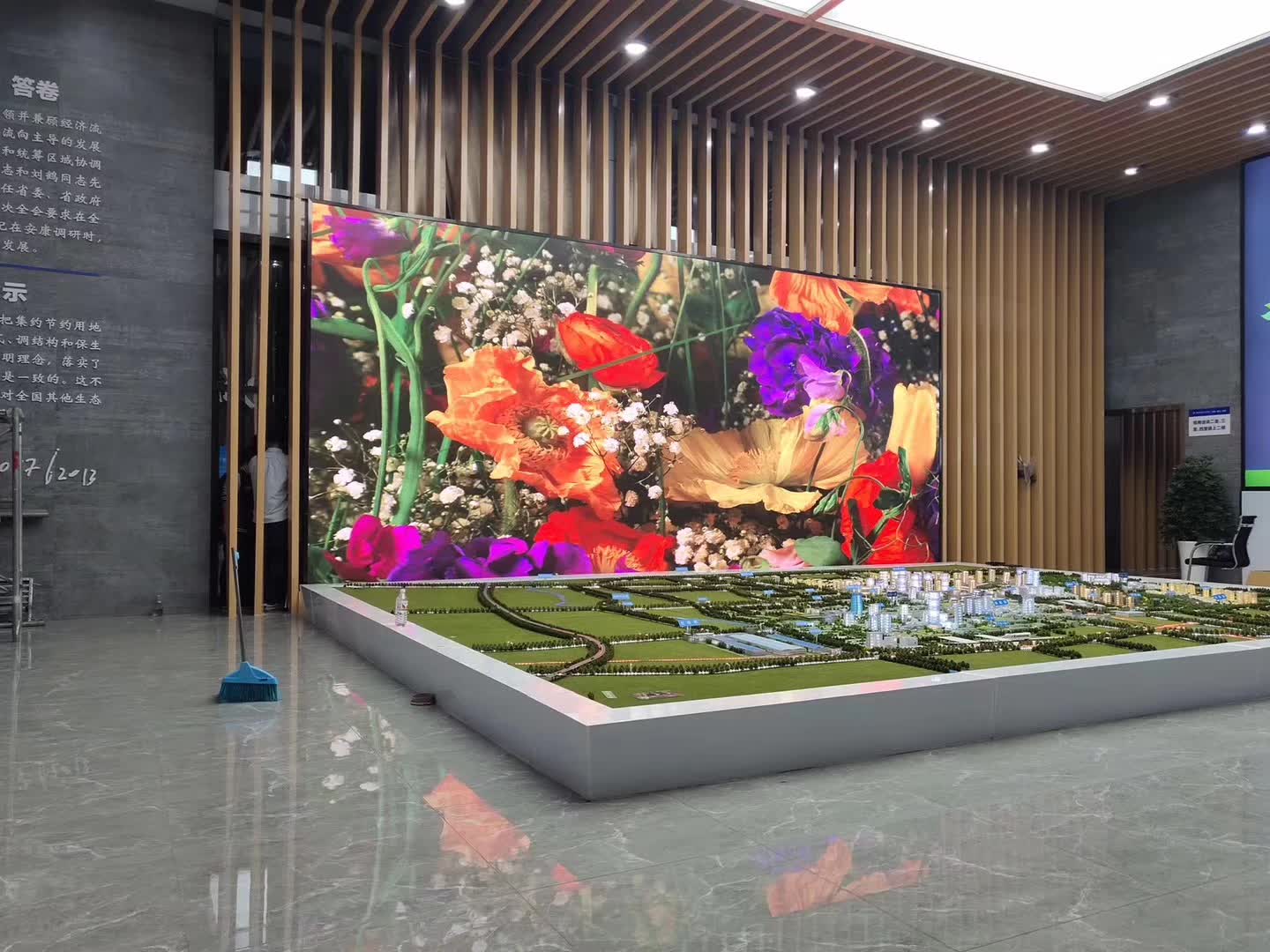

Our P1.25 led video wall screen can be widely used for advertising play in many places, such as, shop, school, hospital, meeting room, railway, metro, airport, stage, supermarket, shopping mall, party, concert, hotel and business building etc.
Images
Product lnformation
- Pixel Pitch of P1.25 led video wall screen: 1.25mm
- Module size: 320x160mm or 160x160mm
- Pixel Configuration: 1R1G1B
- LED type: SMD1010
- Resolution: 640000 dots per square meter
- Cabinet type: die casting aluminum cabinet
- Cabinet Size: 640x480mm
- Cabinet weight: 30Kg/㎡
- Maintenance type: Back or front
- Protective grade: IP30
- Brightness: 450 nits/㎡.
- Scanning frequency: 1/64
- Best view distance: >=1.25 meters
- Power consumption: Average 400W W/㎡
- Input Voltage: AC220V/50Hz or AC110V/60Hz.
- Viewing Angle: 160°/160° (H/V).
- Refresh frequency:1920Hz, 3840Hz.
- Earth Leakage Current: ≤ 3mA
- Dot Defects Rate: ≤ 0.0001
- MBTF: 50,000 hours.
- Lift span: 100,000 hours.
- Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
- Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
- Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
- Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
- Gray grade: 256 degree.
