Indoor P1.563 led wall sceen
Our P1.563 led video wall screen can be widely used for advertising play in many places, such as, shop, school, hospital, meeting room, railway, metro, airport, stage, supermarket, shopping mall, party, concert, hotel and business building etc.

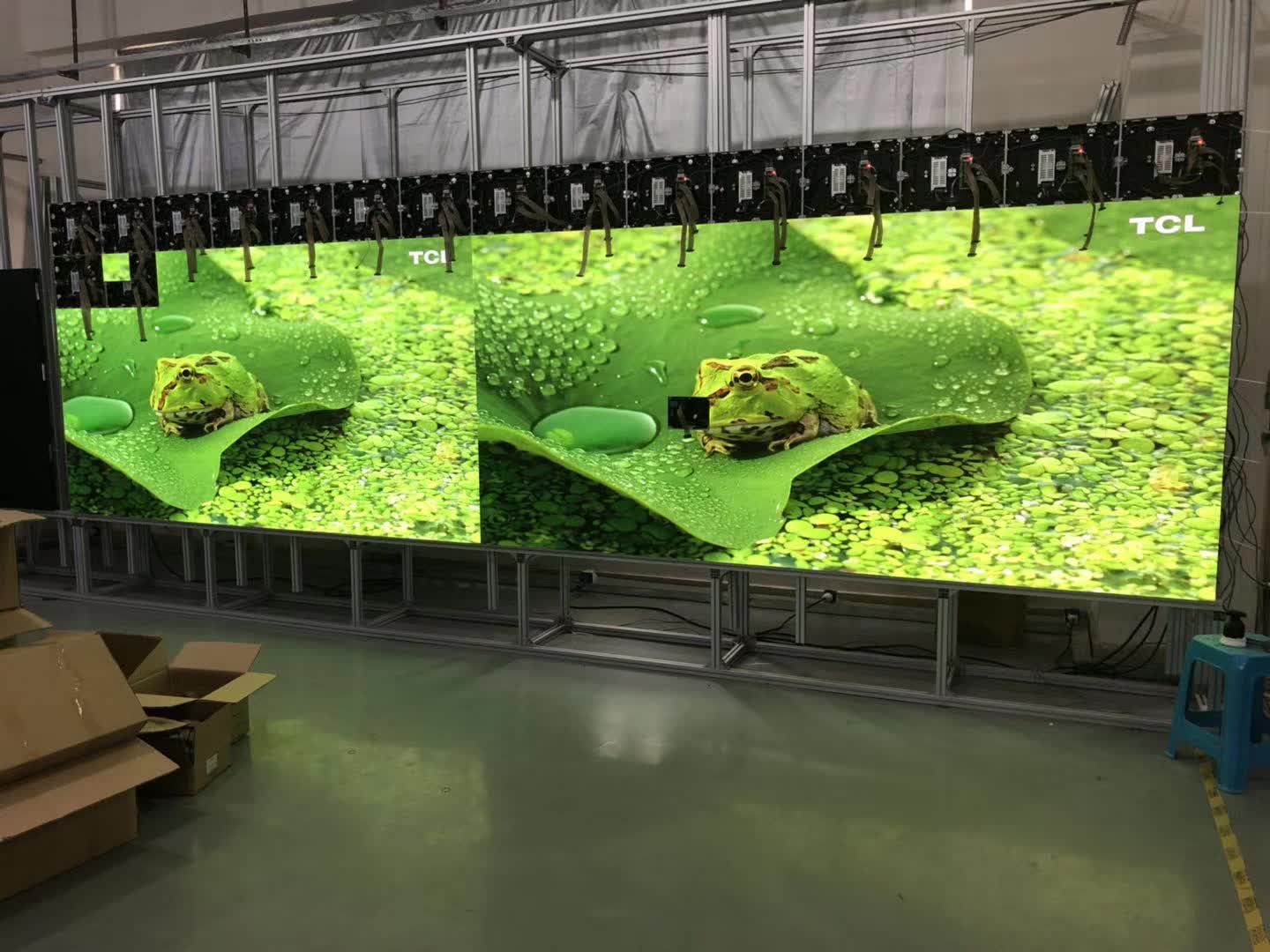

Images
Product lnformation
Pixel Pitch of indoor led display: 1.563mm
Module size: 200x150mm
Pixel Configuration: 1R1G1B
LED type: SMD1010
Resolution: 409600 dots per square meter
Cabinet type: die casting aluminum cabinet
Cabinet Size: 400x300mm
Cabinet weight: 30Kg/㎡
Maintenance type: Back or front
Protective grade: IP30
Brightness: 600~800 nits/㎡.
Scanning frequency: 1/48
Best view distance: >=1.563 meters
Power consumption: Average 400W W/㎡
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency:1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 50,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
