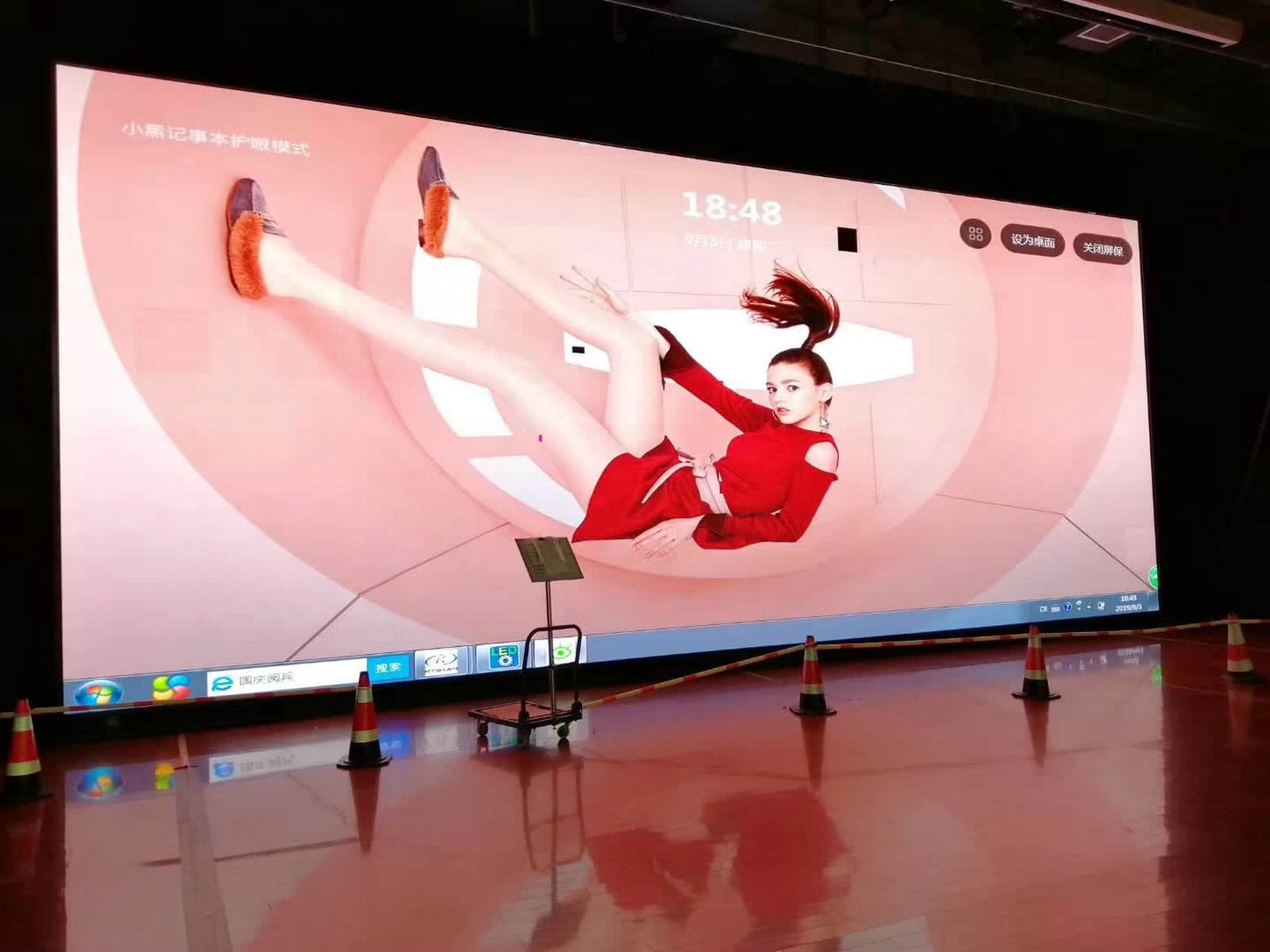

Indoor P1.86 led wall sceen
Our P1.86 led video wall screen can be widely used for advertising play in many places, such as, shop, school, hospital, meeting room, railway, metro, airport, stage, supermarket, shopping mall, party, concert, hotel and business building etc.
Images
Product lnformation
- Pixel Pitch of indoor led display: 1.86mm
- Module size: 320x160mm,
- Pixel Configuration: 1R1G1B
- LED type: SMD 3 in 1
- Cabinet type: Steel cabinet and die casting aluminum cabinet.
- Cabinet Size: 640x480mm,
- Cabinet weight: about 30kg/㎡ for die casting aluminum cabinet.
- Maintenance type: Back or front or both back and front.
- Protective grade: IP30
- Brightness: 800~1000 nits/㎡.
- Scanning frequency:1/16, 1/26, 1/30, 1/32.
- Best view distance: 1.9m ~ 100m.
- Power consumption: Average 400W/㎡
- Input Voltage: AC220V/50Hz or AC110V/60Hz.
- Viewing Angle: 130°/130° (H/V).
- Refresh frequency: 3840Hz.
- Earth Leakage Current: ≤ 3mA
- Dot Defects Rate: ≤ 0.0001
- MBTF: 5,000 hours.
- Lift span: 100,000 hours.
- Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
- Strorage Temp. & RH: ﹣40℃～85℃ / 10%～95%RH
- Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
- Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
- Gray grade: 256 degree.
- Max. color of display: 65536x65536x65536
