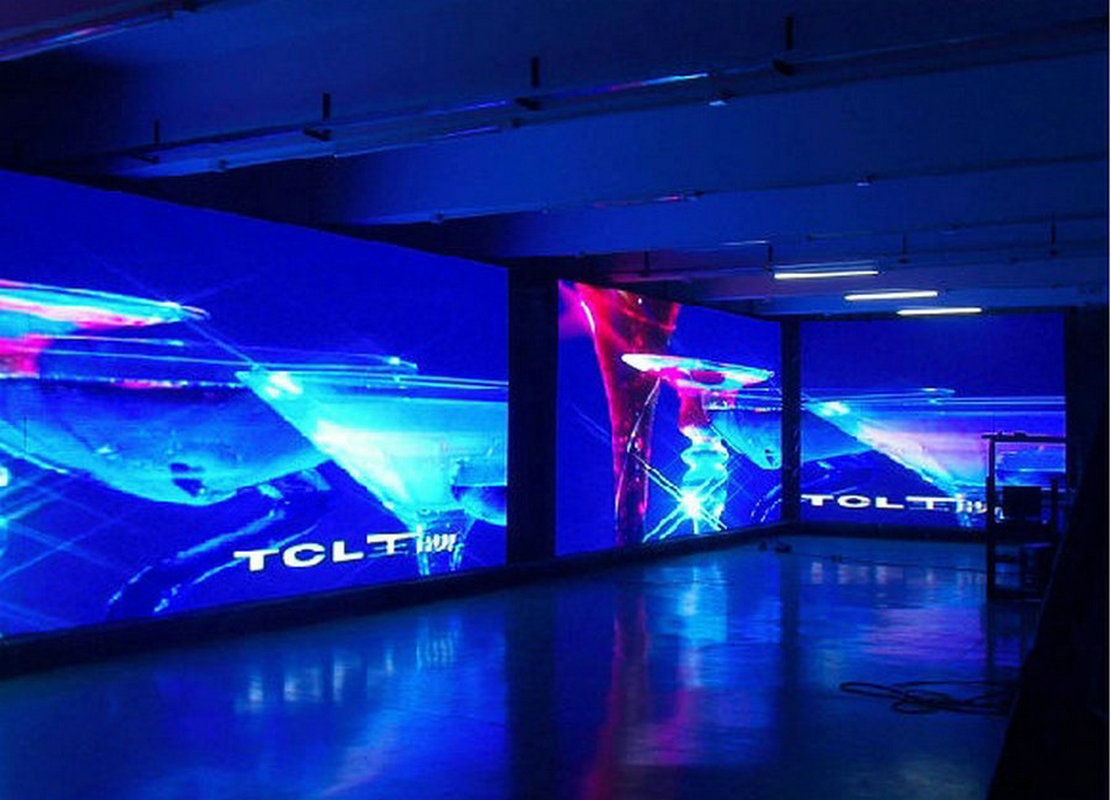

Indoor P6 led wall sceen
Our P6 led video wall screen can be widely used for advertising play in many places, such as, shop, school, hospital, meeting room, railway, metro, airport, stage, supermarket, shopping mall, party, concert, hotel and business building etc.
Images
Product lnformation
Pixel Pitch of indoor led screen: 6mm
Module size: 192X192mm
Pixel Configuration: 1R1G1B
LED type: SMD3528
Resolution: 27777 dots per square meter
Cabinet type: steel cabinet and die casting aluminum cabinet
Cabinet Size: 576x576 or 768x768mm or 960x960mm or other customized size
Cabinet weight: 40Kg/㎡ for steel cabinet; 30Kg/㎡ for aluminum cabinet
Maintenance type: Back or front
Protective grade: IP30
Brightness: 1000~1500 nits/㎡.
Scanning frequency: 1/16 or 1/8
Best view distance: >=6 meters
Power consumption: Average 235W W/㎡
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency: 1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 50,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
