Indoor P7.62 led wall sceen

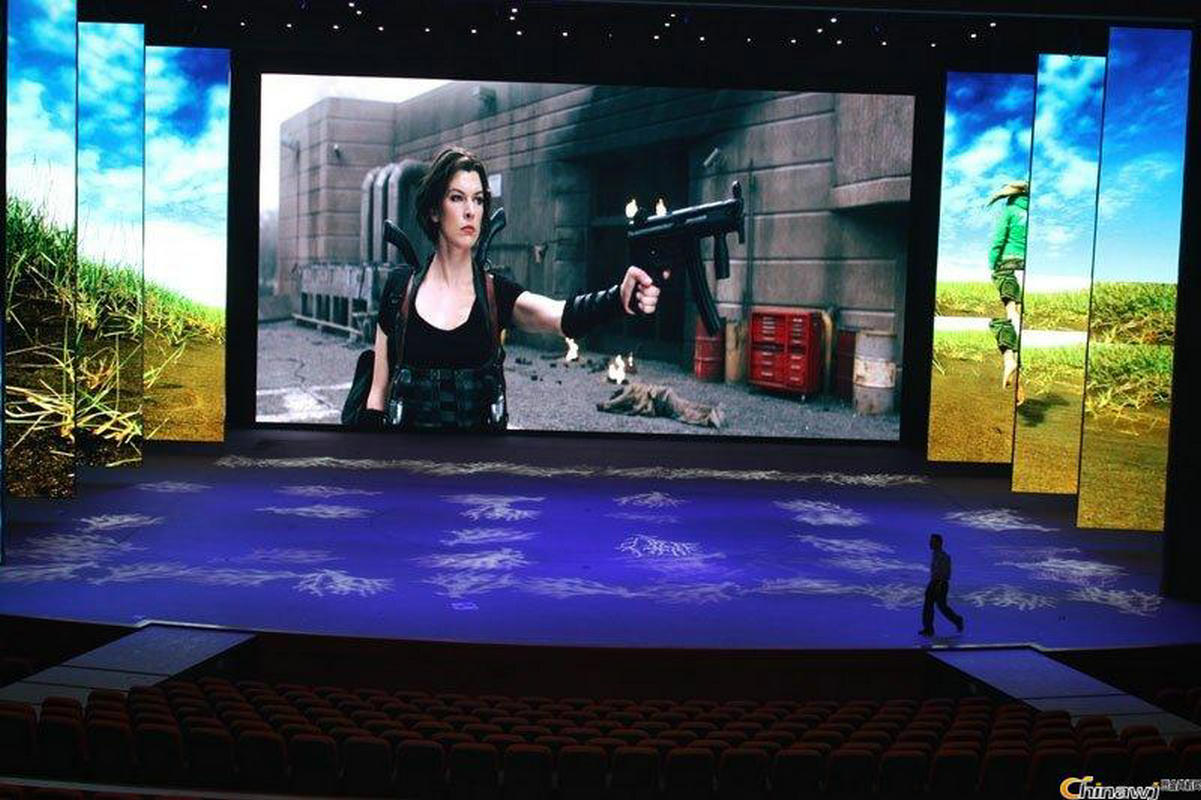

Our P7.62 led video wall screen can be widely used for advertising play in many places, such as, shop, school, hospital, meeting room, railway, metro, airport, stage, supermarket, shopping mall, party, concert, hotel and business building etc.
Images
Product lnformation
Pixel Pitch of indoor P7.62 led wall screen: 6mm
Module size: 244X122mm or 244x244mm
Pixel Configuration: 1R1G1B
LED type: SMD3528
Resolution: 17222 dots per square meter
Cabinet type: steel cabinet
Cabinet Size: 732x732mm or 976x976mm or other customized size
Cabinet weight: 40Kg/㎡ for steel cabinet;
Maintenance type: Back or front
Protective grade: IP30
Brightness: 1000~1500 nits/㎡.
Scanning frequency: 1/16 or 1/8
Best view distance: >=7.6 meters
Power consumption: Average 150W W/㎡
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency: 1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 50,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
