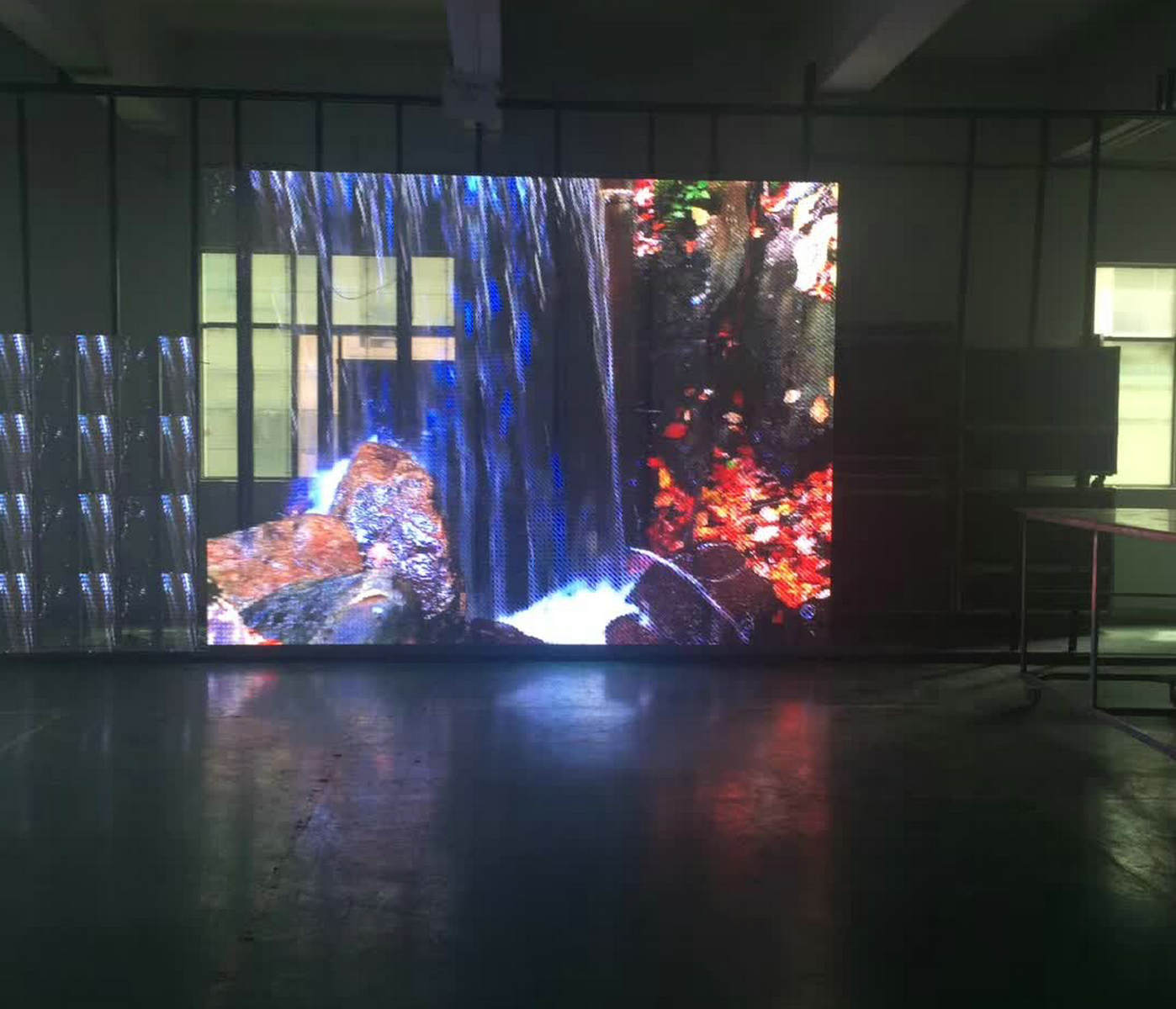

Indoor P3.91-5 transparent led wall screen
Our indoor P3.91-5 transparent led screen can be widely used for advertising play in shop, school, hospital, stage, concernt, office, railway, metro, airport, supermarket, mall and business building etc.
Images
Product lnformation
- Pixel Pitch of indoor Transparent led screen: P3.91-5
- Pixel Configuration: 1R1G1B
- LED type: SMD 3 in 1
- Cabinet material: Aluminum alloy
- Isntallation way: hang or wall mounted
- Weight: 15Kg/㎡
- Maintenance type: Back
- Protective grade: IP55
- Brightness: 1500~4000 nits/㎡.
- Scanning frequency: Static
- Best view distance: 4m ~ 300m.
- Power consumption: 100W ~ 300W/㎡
- Input Voltage: AC220V/50Hz or AC110V/60Hz.
- Viewing Angle: 160°/160° (H/V).
- Refresh frequency: 1920Hz, 3840Hz.
- Earth Leakage Current: ≤ 3mA
- Dot Defects Rate: ≤ 0.0001
- MBTF: 5,000 hours.
- Lift span: 100,000 hours.
- Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
- Strorage Temp. & RH: ﹣40℃～85℃ / 20%～90%RH
- Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
- Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
- Gray grade: 256 degree.
- Max. color of display: 65536x65536x65536.
