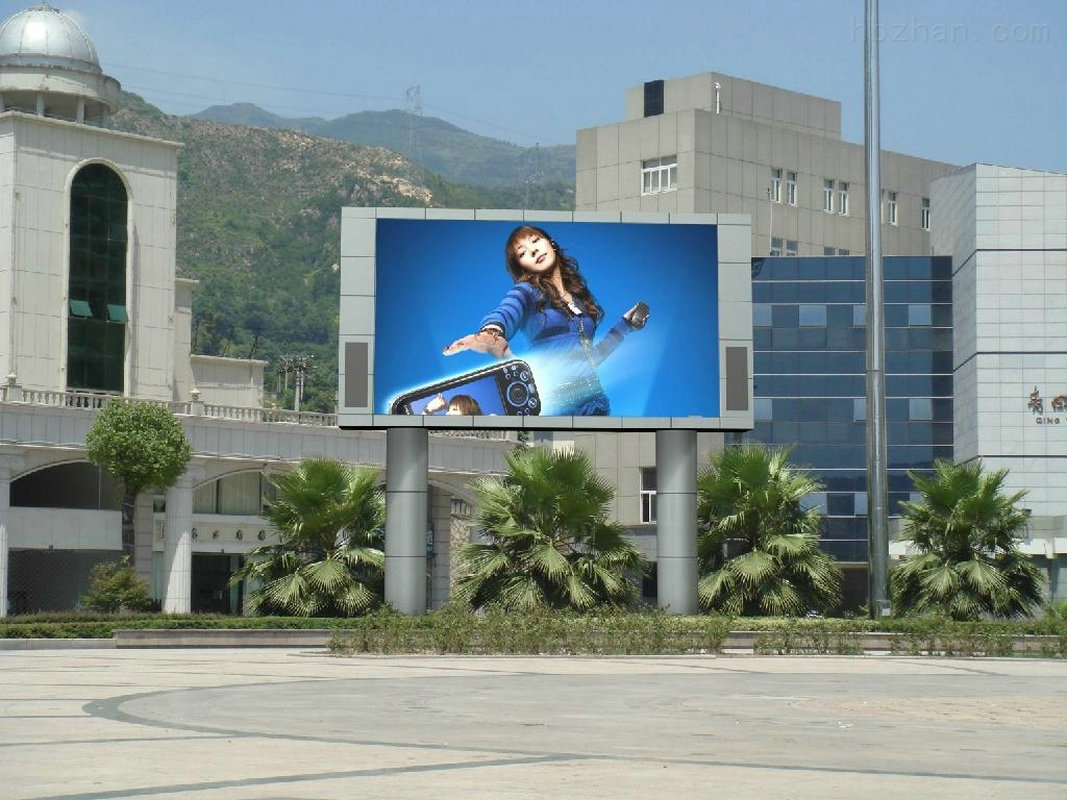

Outdoor P5 led wall screen
Our outdoor P5 led wall screen can be widely used for advertising play in many places, such as, shop, school, hospital, railway, metro, airport, stage, transportation, supermarket, mall, hotel and business building etc.
Images
Product lnformation
Pixel Pitch of outdoor P5 led video wall screen: 5mm
Module size: 192x192mm
Resolution: 40000 dots per square meter
Pixel Configuration: 1R1G1B
LED type: SMD2727
Cabinet type: waterproof steel cabinet and die casting aluminum cabinet
Cabinet Size: based on the quantity of led module
Cabinet weight: 40Kg/㎡ for steel cabinet; 32Kg/㎡ for aluminum cabinet
Maintenance type: front or back.
Protective grade: IP65
Brightness: 5000~6500 nits/㎡.
Best view distance: 5m ~ 500m.
Power consumption: Average 300W/㎡
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency: 1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 50,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
Color temperature: 6500-9300k.
