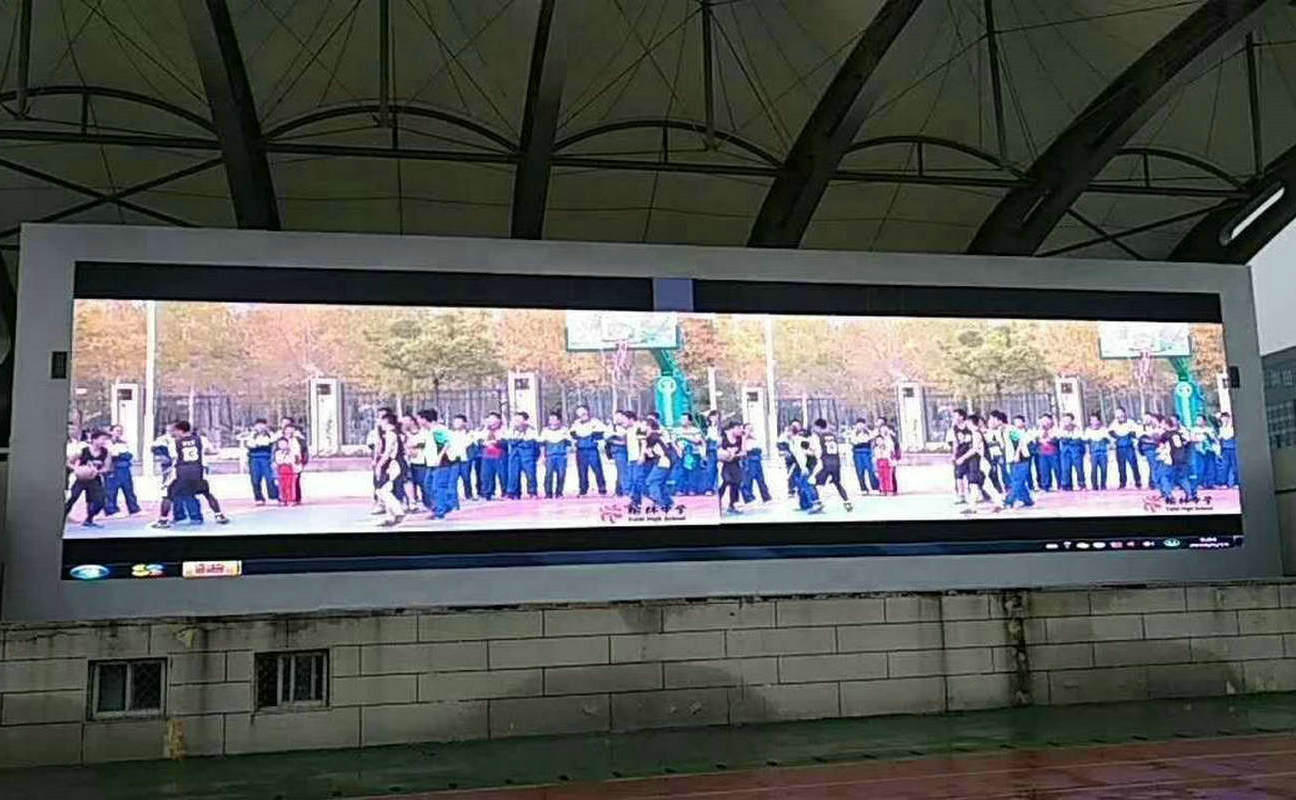

Outdoor P10 led wall screen
Our outdoor P10 led wall screen can be widely used for advertising play in many places, such as, shop, school, hospital, railway, metro, airport, stage, transportation, supermarket, mall, hotel and business building etc.
Images
Product lnformation
Pixel Pitch of P10 outdoor led screen: 10mm
Module size: 320x160mm,320x320mm
Pixel Configuration: 1R1G1B
LED type: SMD3535
Resolution: 10000 dots per square meter
Cabinet type: Steel cabinet and die casting aluminum cabinet
Cabinet Size: (1) For steel cabinet, it can be customized; (2) 960x960mm or 640x640mm for die casting aluminum cabinet
Cabinet weight: 40Kg/㎡ for steel cabinet; 30Kg/㎡ for steel cabinet;
Maintenance type: Back or front
Protective grade: IP65 in front and IP54/55 on back
Brightness: 4000~7000 nits/㎡.
Scanning frequency: 1/2; 1/4
Best view distance: >=10 meters
Power consumption: Average 300W W/㎡
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency: 720Hz, 1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 50,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
