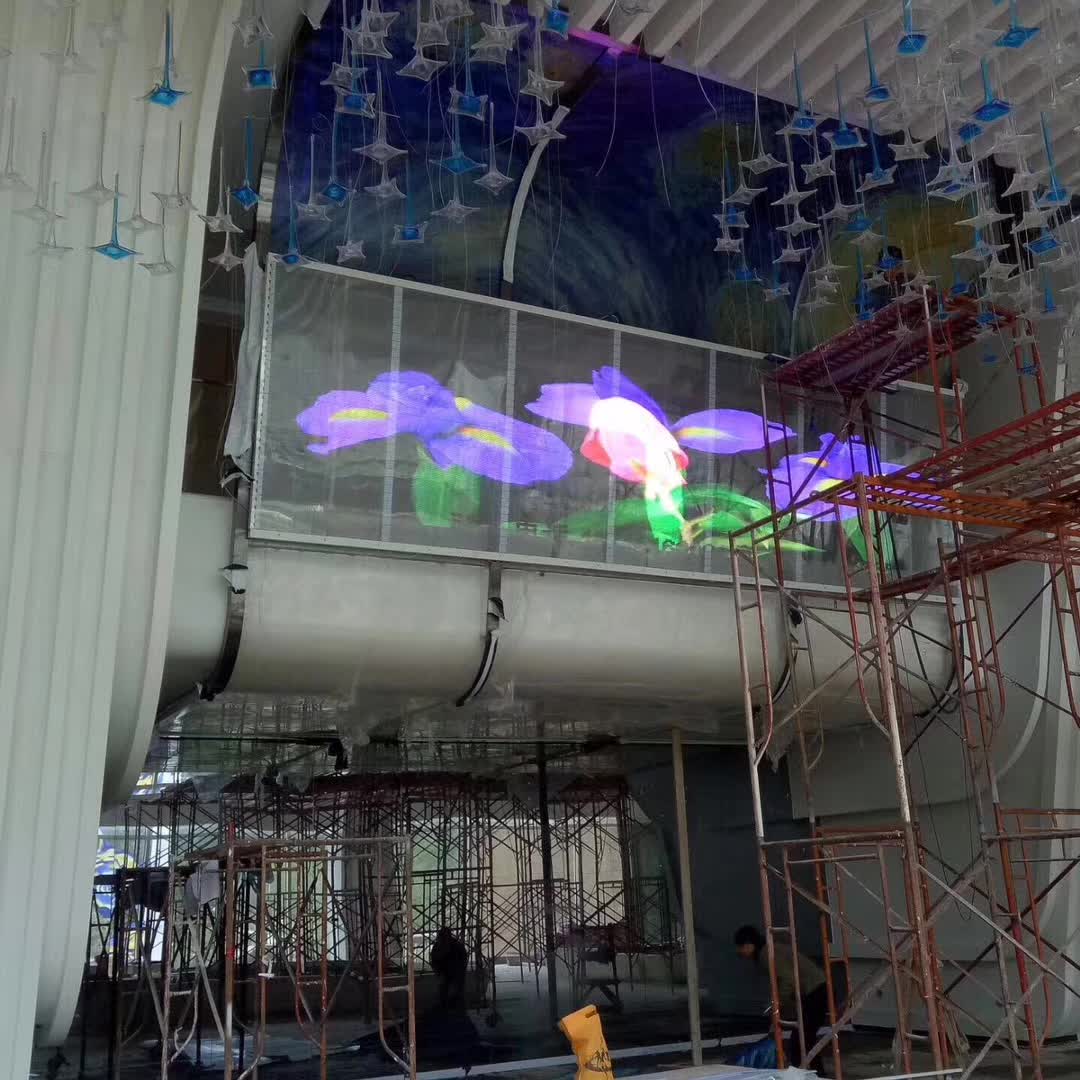

Outdoor P16.67-16.67 transparent led screen
Our outdoor P16.67-16.67 transparent led screen can be widely used for advertising play in shop, school, hospital, stage, concernt, office, railway, metro, airport, supermarket, mall and business building etc.
Images
Product lnformation
Pixel Pitch of indoor transparent led screen: 16.67-16.67mm
Module size: 250x500mm, 250x250mm.
Pixel Configuration: 1R1G1B
LED type: SMD 3 in 1
Resolution: 3600 dots per square meter
Cabinet type: Aluminum alloy cabinet.
Cabinet Size: 500x500mm, 500x1000mm.
Cabinet weight: 15kg/㎡
Maintenance type: Back
Protective grade: IP68
Brightness: 5500 nits/㎡.
Scanning frequency: 1/4
Best view distance: 17m ~ 300m.
Power consumption: 150W/㎡
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency: 1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 50,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
Strorage Temp. & RH: ﹣35℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
