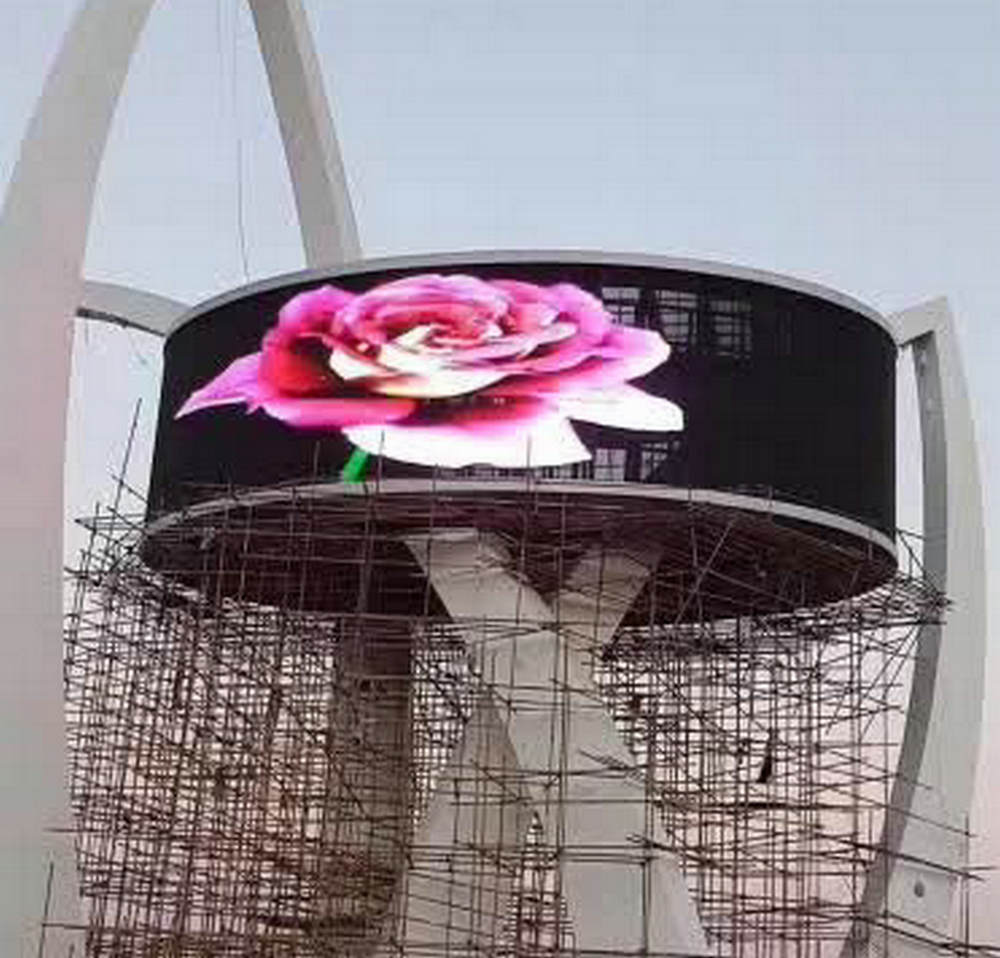

Outdoor curved transparent led wall screen
Our outdoor curved transparent led wall screen can be widely used for advertising play in shop, school, hospital, stage, concernt, office, railway, metro, airport, supermarket, mall and business building etc.
Images
Product lnformation
- Optional model of outdoor curved transparent led wall screen: P3.91-7.82, P7.82-7.82, P10.4-10.4, P8.335-12.5, P16.67-16.67, P16.67-33, P31.25-50, P50-50, P50-100
- Module size: 250x250mm, 250x500mm
- Pixel Configuration: 1R1G1B
- LED type: SMD 3 in 1
- Resolution: 200 dots ~ 32768 dots per square meter based on different model
- Cabinet type: Aluminum alloy cabinet.
- Cabinet Size: 1000x1000mm, 500x1000mm.
- Cabinet weight: 12Kg/㎡.
- Maintenance type: Back.
- Protective grade: IP68
- Brightness: 4000~5500 nits/㎡.
- Transparency: 40% ~90%.
- Best view distance: 4m ~ 1000m.
- Power consumption: 200W ~ 500W/㎡ based on different model.
- Input Voltage: AC220V/50Hz or AC110V/60Hz.
- Viewing Angle: 160°/160° (H/V).
- Refresh frequency: 1920Hz, 3840Hz.
- Earth Leakage Current: ≤ 3mA
- Dot Defects Rate: ≤ 0.0001
- MBTF: 50,000 hours.
- Lift span: 100,000 hours.
- Operating Temp.& RH: ﹣20℃～65℃ / 20%～90%RH
- Strorage Temp. & RH: ﹣40℃～85℃ / 20%～90%RH
- Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
- Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
- Gray grade: 256 degree.
- Color temperature: 6500-9300k.
