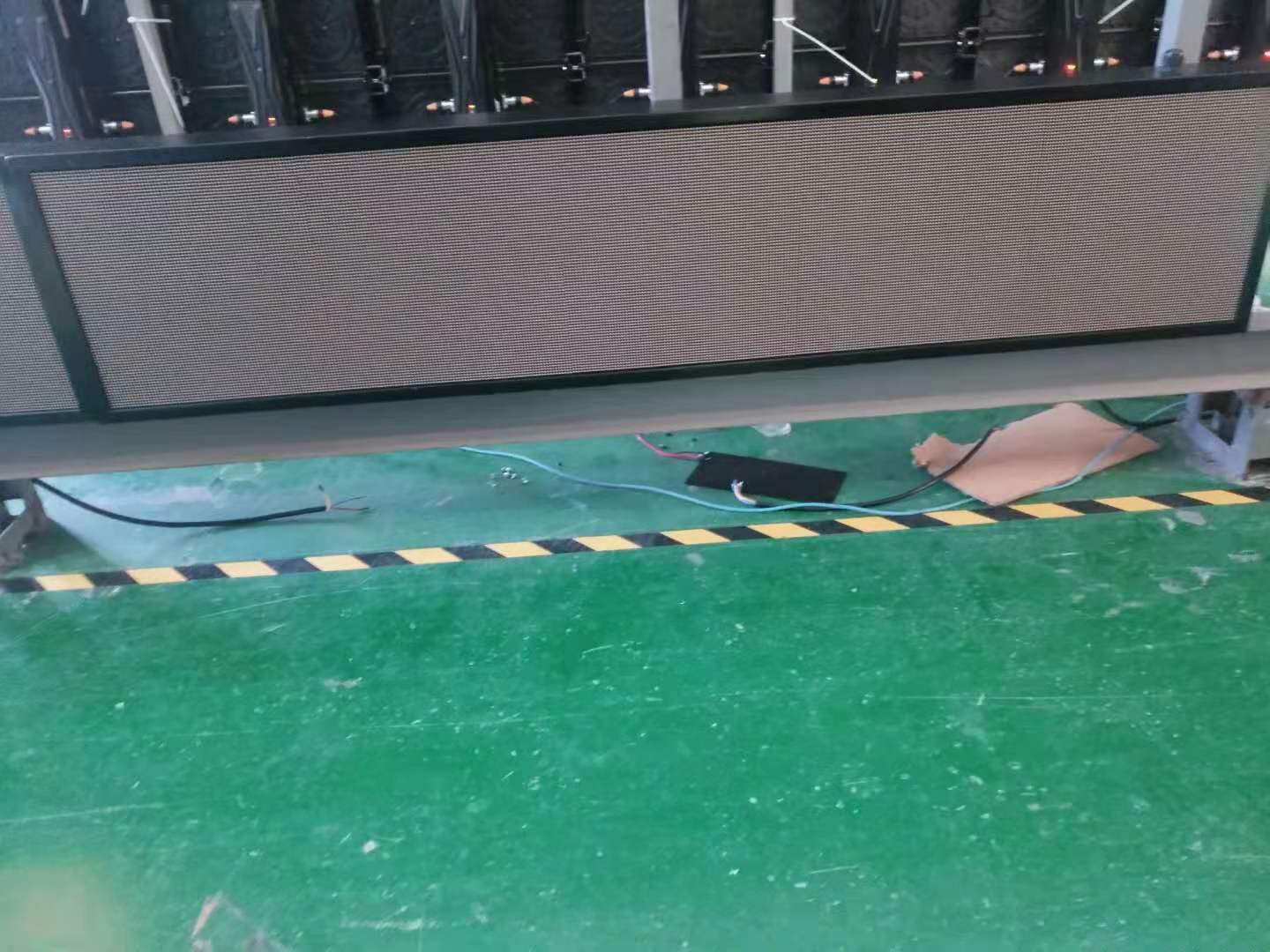

Stretched strip led screen
Our indoor and outdoor Stretched strip led screen can be widely used for advertising play in many places, such as, shop, school, hospital, train station, metro station, airport, supermarket, shopping mall, bar, club, hotel and business building etc.
Images
Product lnformation
Optional model of indoor and outdoor stretched strip led display led screen: P3, P4, P5, P6, P8, P10
Module size: 256x128mm, 320x160mm,192x192mm,
Pixel Configuration: 1R1G1B
LED type: SMD 3 in 1
Cabinet type: Steel cabinet
Cabinet Size: it can be customized as module quantity;
Cabinet weight: 40Kg/㎡ for steel cabinet;
Maintenance type: Back or front or both back and front.
Protective grade: IP30 for indoor; IP65 for outdoor
Brightness: 800~6000 nits/㎡.
Scanning frequency: 1/2, 1/4, 1/8, 1/16, 1/32
Best view distance: >=3 meters
Power consumption: 300W ~ 600W/㎡ based on different model.
Input Voltage: AC220V/50Hz or AC110V/60Hz.
Viewing Angle: 160°/160° (H/V).
Refresh frequency: 720Hz, 1920Hz, 3840Hz.
Earth Leakage Current: ≤ 3mA
Dot Defects Rate: ≤ 0.0001
MBTF: 50,000 hours.
Lift span: 100,000 hours.
Operating Temp.& RH: ﹣20℃～60℃ / 20%～90%RH
Strorage Temp. & RH: ﹣40℃～80℃ / 20%～90%RH
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION- YPbPr, PAL/NTSC,HDMI, VGA, HD_SDI etc
Gray grade: 256 degree.
